Starting from:
$14,399
Specifications
- Manufacturer: Kawasaki

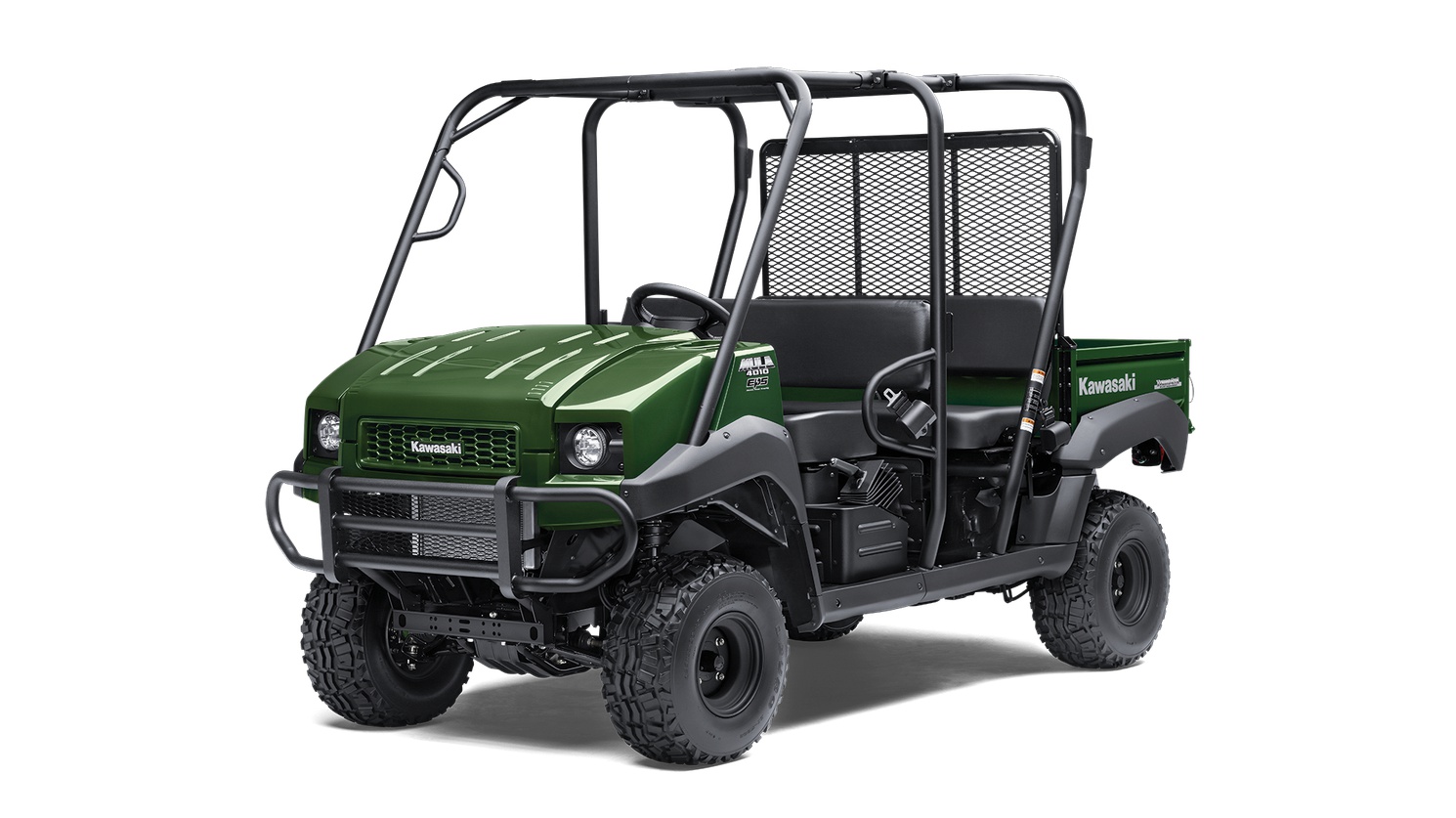

- Model: MULE 4010 TRANS 4x4 Timberline Green
- Year: 2020
- Type: 2- To 4-Passenger
- Power: 14.7 kW {20 PS} @ 3,600 tr/min
- Torque: 47.0 N·m {4.8 kgf·m} @ 2,500 tr/min
- Engine: 4-Stroke, OHV, 90º V-twin
- Displacement: 617cc
- Bore x Stroke: 76.0 x 68.0 mm
- Compression Ratio: 10.3:1
- Fuel System: Fuel Injection, Mikuni AC34
- Ignition: Electric
- Cooling: Liquid
- Lubrication: Forced Lubrication (wet sump)
- Transmission: Kawasaki Automatic Power Drive Systems (KAPS): dual-range forward, neutral, reverse
- Primary Reduction Ratio: 3.9~0.85 (Belt drive torque converter)
- Gear Ratio: Forward (High): 1.821 (51/28)
- Gear Ratio: Forward (Low): 3.750 (51/28 x 25/20 x 28/17)
- Gear Ratio: Reverse: 4.220 (41/20 x 25/20 x 28/17)
- Final Reduction Ratio: 5.4 (81/15)
- Final Drive: Gear (Selectable 2WD/4WD) with limited slip front differential and dual-mode locking rear differential
- Top Speed: 40 km/h (25 mph) governed
- Air Filter: Snorkel-type with 2-stage dry replaceable element
- Oil Filter: Automotive-type spin-on canister
- Exhaust: Muffler with USFS-approved spark arrestor
- Electrical: 12-volt DC; 18-amp hour battery, 23-amp alternator
- Frame: Ladder Type, Tubular Steel
- Front Wheel Travel: 100 mm (3.9 in.)
- Rear Wheel Travel: 70 mm (2.8 in.)
- Rake: 7.5º
- Trail: 35 mm (1.4 in.)
- Front Tires: 23 x 11.00-10 Tubeless
- Rear Tires: 23 x 11.00-10 Tubeless
- Front Brakes: Dual Hydraulic Drums
- Rear Brakes: Dual Hydraulic Drums
- Parking Brake: Mechanical Drum
- Turning Radius: 3.9 m (12.8 ft.)
- Cargo Bed Dimensions (LxWxH): 4-Person Mode: 770 x 1,212 x 287 mm (30.3 x 47.7 x 11.3 in.)
- Cargo Bed Dimensions (LxWxH): 2-Person Mode: 1,280 x 1,212 x 287 mm (50.4 x 47.7 x 11.3 in.)
- Cargo Bed Capacity: 4-Person Mode: 182 kg (401 lbs.)
- Cargo Bed Capacity: 2-Person Mode: 363 kg (800 lbs.)
- Seating Capacity: 2 or 4
- Vehicle Load Capacity: 603 kg (1,330 lbs.)
- Towing Capacity: 544 kg (1,199.3 lbs.)
- Overall Length: 3,305 mm (130.1 in.)
- Overall Width: 1,486 mm (58.5 in.)
- Overall Height: 1,925 mm (75.8 in.)
- Wheelbase: 2,165 mm (85.2 in.)
- Road Clearance: 180 mm (7.1 in.)
- Seat Height: 870 mm (34.3 in.) Front, 885 mm (34.8 in.) Rear
- Curb Mass**: 709 kg (1,563 lbs.)
- Fuel Capacity: 23.5 litres (5.2 gal.)
- Warranty: 36 month warranty
