Starting from: $13,399

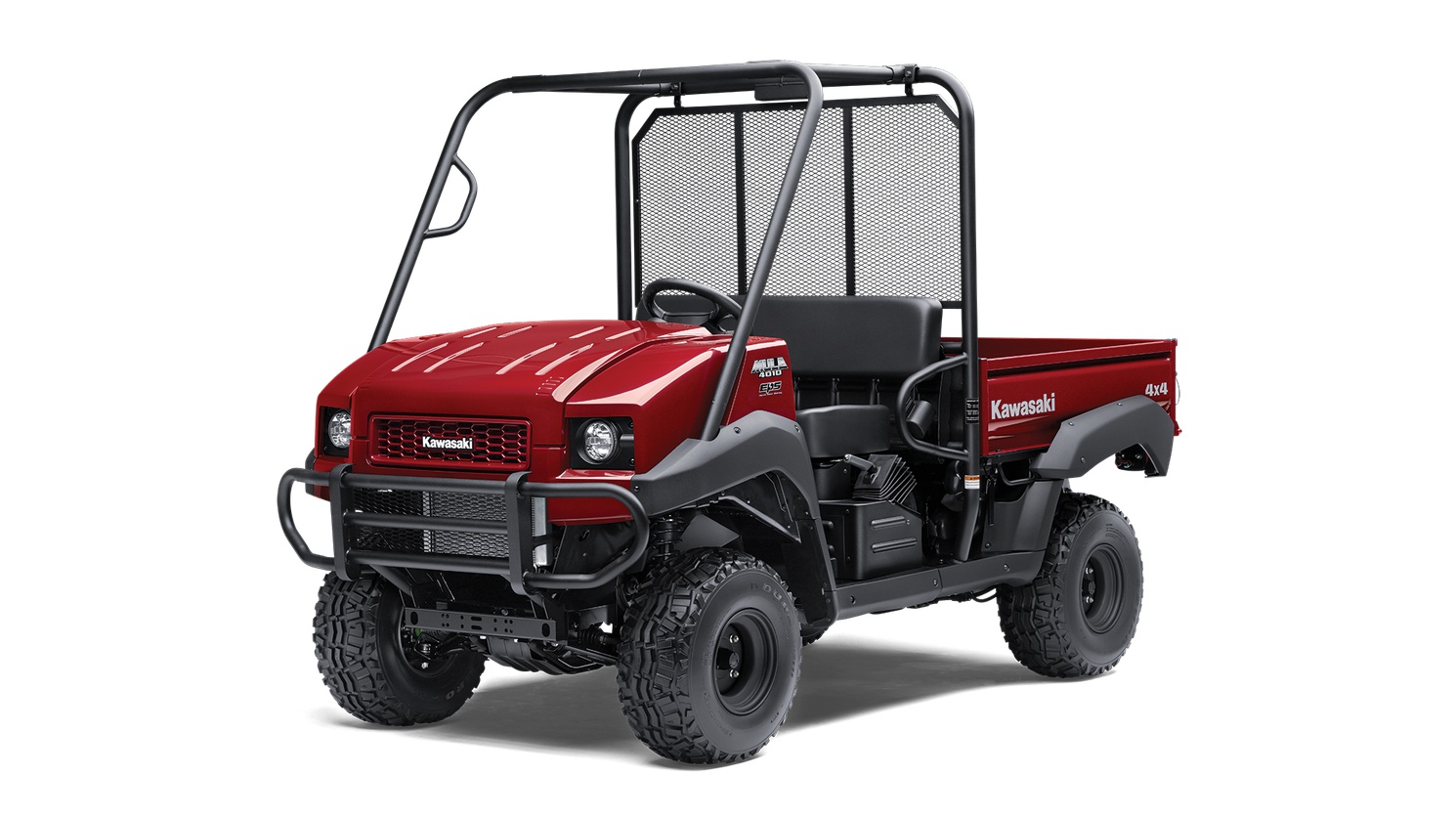

2020 Kawasaki MULE 4010 4x4 Dark Royal Red

Specifications

  • Manufacturer: Kawasaki
  • Model: MULE 4010 4x4 Dark Royal Red
  • Year: 2020
  • Type: 2-Passenger
  • Power: 14.7 kW {20 PS} @ 3,600 tr/min
  • Torque: 47.0 N·m {4.8 kgf·m} @ 2,500 tr/min
  • Engine: 4-Stroke, OHV, 90º V-twin
  • Displacement: 617cc
  • Bore x Stroke: 76.0 x 68.0 mm
  • Compression Ratio: 10.3:1
  • Fuel System: Fuel Injection, Mikuni AC34
  • Ignition: Electric
  • Cooling: Liquid
  • Lubrication: Forced Lubrication (wet sump)
  • Transmission: Kawasaki Automatic Power Drive Systems (KAPS): dual-range forward, neutral, reverse
  • Primary Reduction Ratio: 3.9~0.85 (Belt drive torque converter)
  • Gear Ratio: Forward (High): 1.821 (51/28)
  • Gear Ratio: Forward (Low): 3.750 (51/28 x 25/20 x 28/17)
  • Gear Ratio: Reverse: 4.220 (41/20 x 25/20 x 28/17)
  • Final Reduction Ratio: 5.4 (81/15)
  • Final Drive: Gear (Selectable 2WD/4WD) with limited slip front differential and dual-mode locking rear differential
  • Top Speed: 40 km/h (25 mph) governed
  • Air Filter: Snorkel-type with 2-stage dry replaceable element
  • Oil Filter: Automotive-type spin-on canister
  • Exhaust: Muffler with USFS-approved spark arrestor
  • Electrical: 12-volt DC; 18-amp hour battery, 23-amp alternator
  • Frame: Ladder Type, Tubular Steel
  • Front Suspension: Independent, MacPherson Strut
  • Rear Suspension: Semi-Independent, De Dion Axle
  • Front Wheel Travel: 100 mm (3.9 in.)
  • Rear Wheel Travel: 70 mm (2.8 in.)
  • Rake: 7.5º
  • Trail: 35 mm (1.4 in.)
  • Front Tires: 23 x 11.00-10 Tubeless
  • Rear Tires: 23 x 11.00-10 Tubeless
  • Front Brakes: Hydraulic Drums
  • Rear Brakes: Hydraulic Drums
  • Parking Brake: Mechanical Drum
  • Turning Radius: 3.4 m (11.2 ft.)
  • Cargo Bed Capacity: 363 kg (800 lbs.)
  • Seating Capacity: 2
  • Vehicle Load Capacity: 603 kg (1,330 lbs.)
  • Towing Capacity: 544 kg (1,199.3 lbs.)
  • Overall Length: 3,005 mm (118.3 in.)
  • Overall Width: 1,575 mm (62.0 in.)
  • Overall Height: 1,925 mm (75.8 in.)
  • Wheelbase: 1,870 mm (73.6 in.)
  • Road Clearance: 175 mm (6.9 in.)
  • Seat Height: 865 mm (34.1 in.)
  • Curb Mass**: 638 kg (1,407 lbs.)
  • Fuel Capacity: 23.5 L (5.2 gal.)
  • Warranty: 36 month warranty
